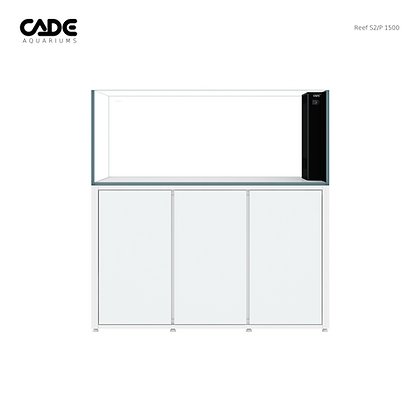

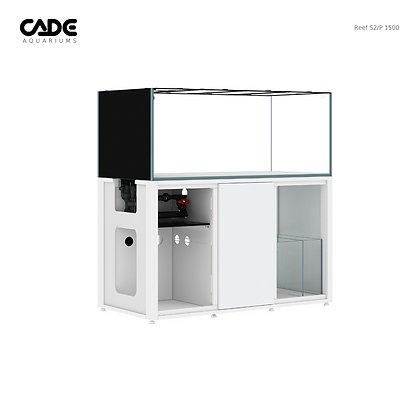

The CADE Reef S2/P is a range of customisable rimless, sump filtered saltwater Peninsula Aquarium systems designed specifically for the advanced reef aquarist.
The S2/P has been expertly crafted to enable the aquarist to build a truly personalised Reef Aquarium system without limitation. The Reef S2/P combines functional design and unique sophistication to produce a system that both compliments contemporary home decor whilst fulfilling all of your Reef keeping requirements.
Designed in Australia, the CADE Reef S2/P range is the new benchmark in Peninsula reefing with an unparalleled design and list of features. Our goal was to create the absolute perfect foundation to build your reef.

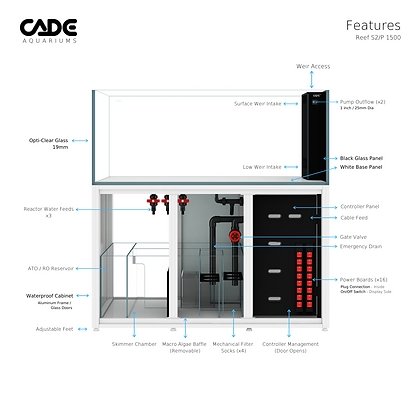

System Specifications
TANK

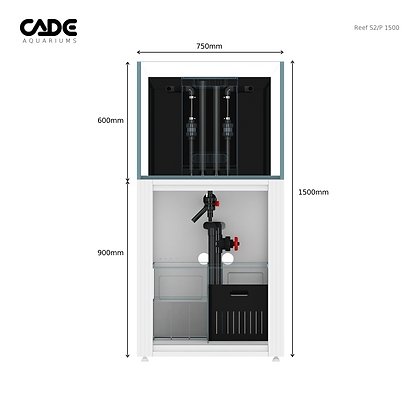

1500x750x600 (LxWxH)
Capacity (Inhabitale): 675L / 178 gal
System Capacity (Total): 796L / 210 gal
19mm Opti Clear Glass Tank
Open Top / Rimless Tank
Laser Etched Logo
Perfect Cut Silicone Edges
Highest Quality German Whacker Silicone
White Tank Base Panel

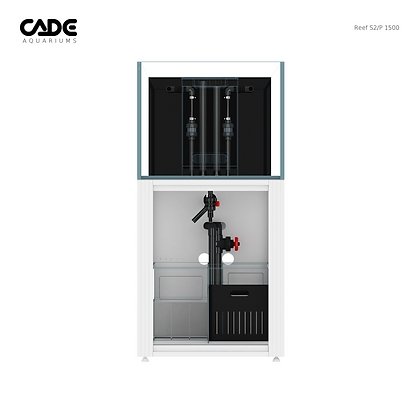

Twin Intake Glass Weir (Unique to CADE)
Super Fine Adjustable Sanking Gate Valve & Emergency Drain
Jump Net Cover (Assembled)

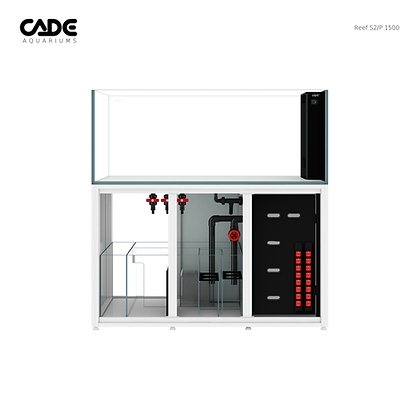

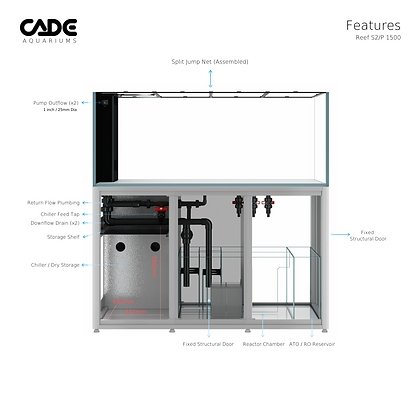

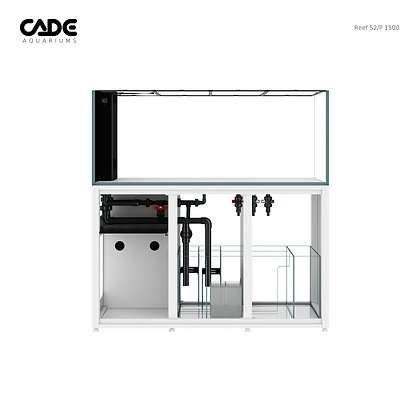

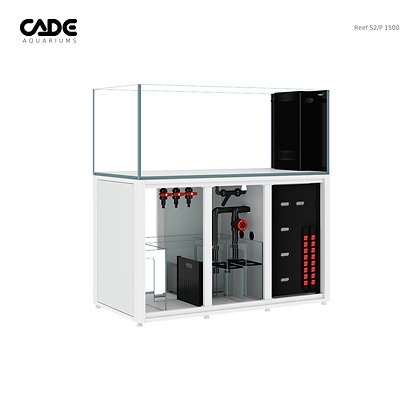

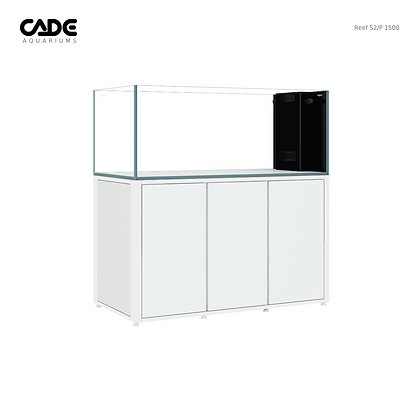

CABINET
1500x750x900 (LxWxH)
100% Waterproof Cabinet (Glass/Aluminium)

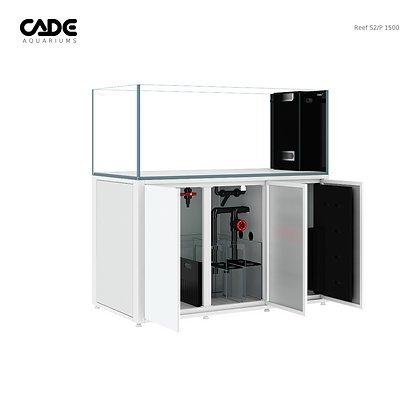

Doors on 3 sides (Centre door on chiller side fixed for structural support)
Chiller/Accessories Space 442 (L) x 493 (W) x 580 (H)
Chiller recommendation: TECO TK1000 / TK2000
Dosing Pump / Accessory Shelf
Controller Management Door (CMD) with 16x Plug Power Boards c/w On/Off switches
Adjustable Castor Feet for Cabinet Levelling
Hidden Adjustable Rust Proof Door Hinges
Hidden Magnetic Door Closers
Cabinet Supplied Assembled with Sump Installed

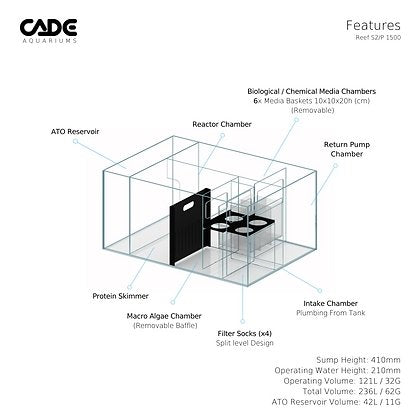

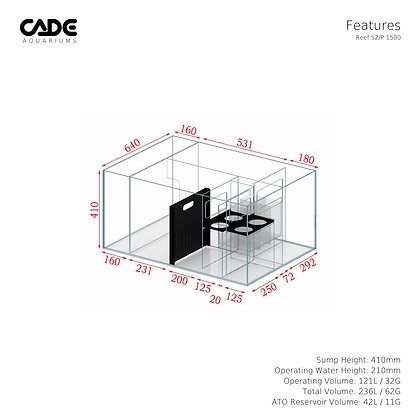

SUMP & PLUMBING
Glass Sump Filtration System
Filter socks 4" (x4) Split Level
Macro Algae Chamber (Removable)
Protein Skimmer Chamber
Reactor Chamber
Biological Media Chamber
Media Baskets (x6) for Bio and Chemical Media
Auto Top Off Reservoir 42L / 11gal

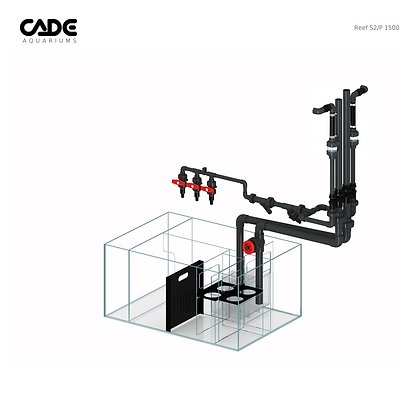

Pre Fabricated Screw Connect Plumbing (No silicone required)
Over Head Reactor Water Feeds (x3)
Chiller Water Feed (x1) Swivels forward/backwards
Reactor and Chiller Water Feeds are supplied with the option of connecting a reactors via hard plumbing (1/2" female) or a 19mm barbed hose fitting (not glued)
